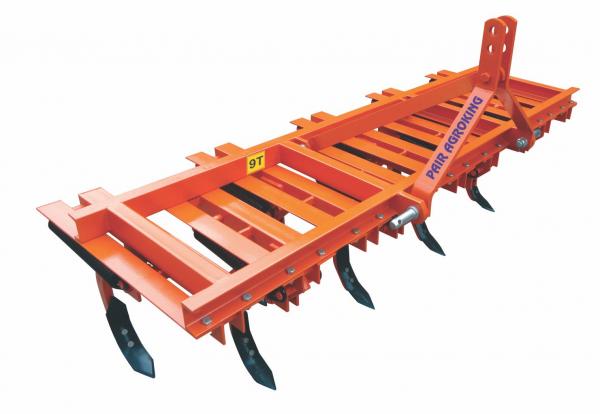

 Extra Heavy Duty Spring Loaded Tiller
|
| |
-
Suitable for use in stone and root obstructed soil.
-
Heavy weighted frame helps in deep cultivation of soil.
-
Prepares seed beds quickly and effectively.
-
Spring provides stability and smooth moving in the dynamic scenarios of the soil.
|
Description
|
PASLEHD-09
|
PASLEHD-11
|
PASLEHD-13
|
PASLEHD-15
|
|
Frame (mm)
|
75x40 (channel)
|
100x50 (channel)
|
|
Spring (mm)
|
10 WD, 50 OD 28.5 Coils
|
|
Tyne’s (mm)
|
50x25 (Forged)
|
|
Linkage 3 Point (mm)
|
50x16 (Rear), 50x16 (Front)
|
|
Shovel
|
60x8 (EN-42)
|
|
Length (mm)
|
2020
|
2457
|
2914
|
3371
|
|
Width (mm)
|
850
|
|
Height (mm)
|
585
|
|
Weight (Kg. Approx)
|
285
|
345
|
405
|
480
|
|
Tractor Power (H.P)
|
40-50
|
55-65
|
70-80
|
85-95
|
|
|
