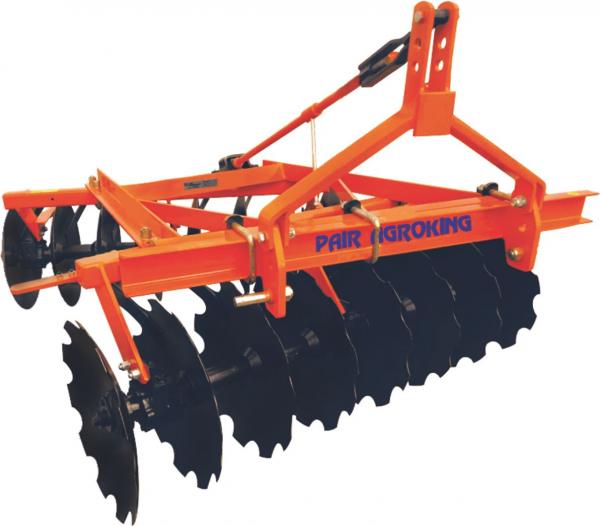

 Mounted Offset disc harrow
|
| |
-
Systamatic Engineering is used to provide stability for the preparation of soil and make it compatible with variety of tractors
-
Used in light and medium Soil.
-
Easy to carry in mounted condition using tractor lift.
-
High quality bearings and hubs ensure smooth operation and put minimal load on the tractor.
|
Description
|
PAMODH-12
|
PAMODH-14
|
PAMODH-16
|
PAMODH-18
|
PAMODH-20
|
PAMODH-22
|
PAMODH-24
|
|
Frame (mm)
|
75x10 Angle Frame With 100x50 Front Channel
|
|
Gang Bolt /Axle (mm)
|
30mm (Solid Sq. Rod)
|
|
No. of disc
|
12
|
14
|
16
|
18
|
20
|
22
|
24
|
|
Type of Disc
|
Notched Disc In front gang & plain Disc In rear gang
|
|
Disc Diameter (mm)
|
508x3 T (20”) or 560x4 T (22”)
|
|
Width of cut (mm Approx.)
|
1420
|
1635
|
1852
|
2068
|
2285
|
2502
|
2718
|
|
Distance Between Disc (mm)
|
228mm
|
|
Bearing Hub
|
4
|
6
|
8
|
|
Weight (Kg. Approx)
|
390
|
430
|
480
|
550
|
615
|
676
|
731
|
|
Tractor Power (HP)
|
30-40
|
40-50
|
50-60
|
60-70
|
70-80
|
80-90
|
90-100
|
|
|
