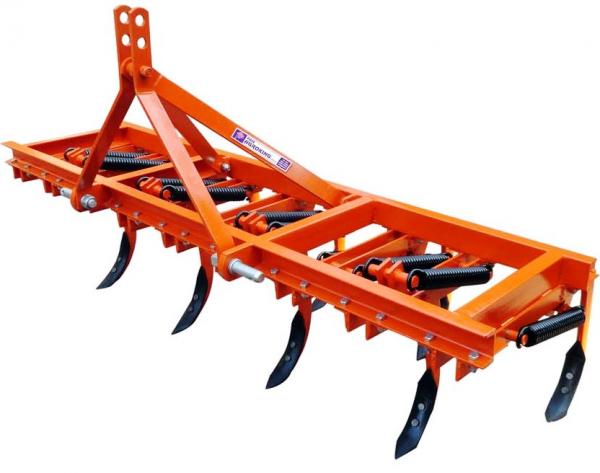

 Medium Duty Spring Loaded Tiller
|
| |
-
Suitable for use in stone and root obstructed soil.
-
Prepares seed beds quikly and effectively.
-
Spring provides stability in the dynamic scenarios of the soil.
-
Forged tynes provide longer life.
|
Description
|
PASLT-09
|
PASLT-11
|
PASLT-13
|
PASLT-15
|
|
Frame (mm)
|
75x40 (channel)
|
100x50 (channel)
|
|
Spring (mm)
|
10 WD, 50 OD, 26 Coils
|
|
Tynes (mm)
|
50x19 (Forged)
|
|
Linkage 3 Point (mm)
|
50x12
|
|
Shovels (mm)
|
60x8(EN- 42)
|
|
Length (mm)
|
2000
|
2457
|
2914
|
3371
|
|
Width (mm)
|
712
|
|
Height (mm)
|
513
|
|
Weight (Kg. Approx.)
|
210
|
260
|
310
|
360
|
|
Tractor Power (HP)
|
40-45
|
50-55
|
60-65
|
70-75
|
|
|
